Product information
Introduction

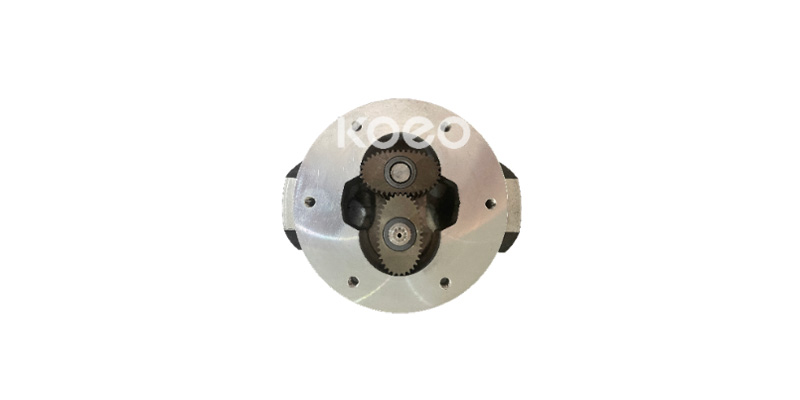

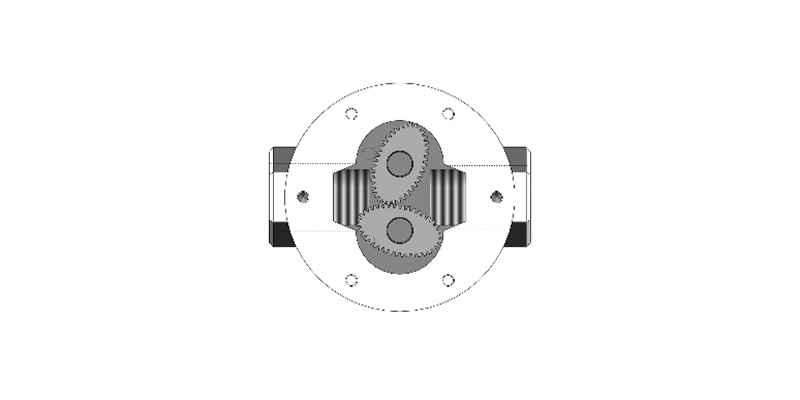

Koeo Digital electronic oval gear flow meter, The new generation of Koeo Oval Gear Flow Meters, the OGM series, is the revolutionary result of over 30 years’ experience applying positive displacement Oval Gear Flow Metering Technology to a variety of industries; all of which insist upon durability, reliability and excellence in performance. Incorporating Oval Gear technology, the OGM series is a range of Positive Displacement Flow Meters specifically designed to withstand the rigours of the typical industrial environment, without compromising overall performance. The Koeo OGM SERIES offers a complete range of Stainless Steel and anodised aluminium flow meters to suit most any industrial application.
A key feature of the OGM series is the revolutionary new mounting system, designed for the quick and easy fitting of a Pulser or local Display module to the flow meter. The unique bayonet style cam is common to all of the modules, enabling the customer to fit any one of the output options to anyone of the OGM SERIES Flow Meter Models, it is immediately ready for service.
Features
Application
Specification
| Model | OGM-25E | OGM-40E | OGM-50E |
| Size | 25mm 1inch | 40mm 1.5inch | 50mm 2inch |
| Minimum Flow range | 20L/min | 25 L/min | 30 L/min |
| Maximum Flow range | 200 L/min | 250 L/min | 300 L/min |
| Maximum Working pressure | 10Bar/1.0MPa | 10Bar/1.0MPa | 10Bar/1.0MPa |
| Accuracy | ±0.5% | ||
| Repeatability | ≤0.03% | ||
| Max. Viscosity | 1000CPS | ||
